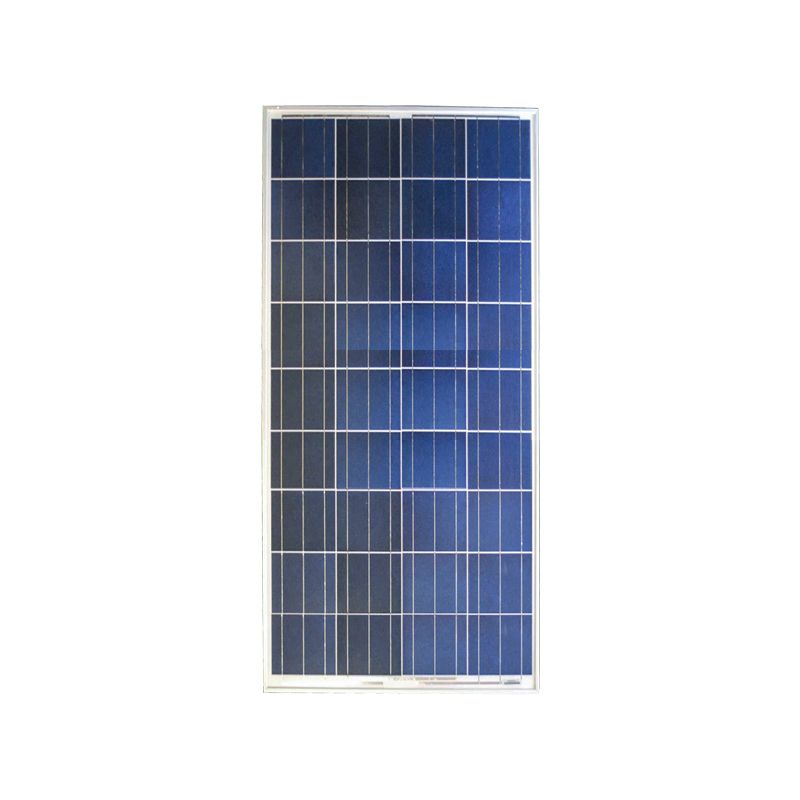

100W Polycrystalline Solar Panel
Product Name:
100W Polycrystalline Solar Panel
Model :
YSP-P100
:
:

Product Description:



Maximum Power(Pmax)

  100W

  Maximum Power Voltage(Vmp)

  18.1V

  Maximum Power Current(Imp)

  5.56A

  Open Circuit Voltage(Voc)

  21.6V

  Short Circuit Current(Isc)

  5.97A

  Module Efficiency

  17%

  Power Tolerance

  3%

  Maximum System Voltage

  1000VDC

  Maximum Series Fuse

  15A

  Operating Temperature

  -40℃-+85℃

  Operating Cell Temperture

  48℃

  Temperature Coefficients of Isc

  0.058%/℃

  Temperature Coefficients of Voc

  -0.389%/℃

  Temperature Coefficients of Pmax

  -0.460%/℃

  Dimensions

  1200*540*40mm

  Weight

  7kg

  Maximum Load

  5400PASCALS

  Number of Cells

  36PCS(4X9)

  Front Glass

  3.2MM tempered low iron glass

  Frame

  Clear anodized aluminium alloy

  Junctions Box

  IP67RATE
